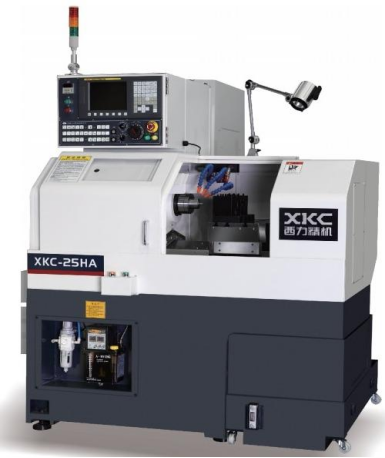

2OH/25H/3OH
SUPER-SMALL HIGH PRECISION CNC LATHES
High Accuracy Symmetry Spindle:
The lathesuing thestructure of symmetry spindle box and Japan NSK super precision Angular Contact ball bearing, and ensures high rigidity and lasting accuracy, spindle run out is less than 2μm.
Unloading Type Clamping Mechanism:
The double stage clamping cylinder unloading assembly gets the patent, to extend the life of clamping mechanism. Max. speed of spindle is 6000 rev/min, can be equipped to fulfil fast and efficient automation production.
High Rigidity Bed:
Design of machine Bed goesthrough an analysis of thermal deformation, high quality meehanite cast iron integrated bed; improve the rigidity of the lathe.
Accurate Feeding:
Each feeding axis is driven by servo motors through Japan NSK、THK high precisionball screws. Machining accuracy is ensured and longtime accuracy is remained. Repeatabilityis less than ±1um.
Comb Type Tool Rest:
The unique design of comb typetool rest gives minimum repeatability error during tool change. The widen tool holder plate and chute type tool, extend the range of tool installation.
Guide way Construction:
The latheusing Japan NSK、THK high precision linear ways, enhanced the whole rigid. The linear of feed spindle using full-seal protection, improve the life of the linear.
Electric Cabinet and Cutting Box:
The design of outlay separateness powerful electric cabinet, easy tomaintain, and more safety. Side pull type cool case and chip box on the right side, easy to put in the small space.
項目ITEM | 20H/25H/30H | |
加工能力 Capacity | 最大回轉(zhuǎn)直徑Max swing diameter | φ310mm |
床鞍上回轉(zhuǎn)直徑Swing over cross slide | Φ160mm | |
最大加工直徑Max. turning diameter | φ130mm | |
最大加工長度Max. turning length | 100mm | |
主軸 Spindle | 回轉(zhuǎn)速度Spindle speed | Max.6000r/min |
主軸可通棒料直徑Through hole diameter | 20H/HA/HC 中20mm 25H/HA/HC φ25mm 30H/HA/HC φ30mm | |
主軸通孔直徑Spindle borediameter | φ35mm | |
回轉(zhuǎn)速度變換Number of spindle speed ranges | 無級Stepless | |
快移速度 Rapid speed | X軸快移速度 X-axis rapid traverse | 20m/min |
Z軸快移速度 Z-axis rapid traverse | 20m/min | |
移動量 Travelof tool slide | X軸移動量 X-axis travel | 240mm |
Z軸移動量 Z-axis travel | 180mm | |
電機 Motor | 主軸電機 H Spindle drive motor HA/HC | 3.7KW(CTB) 3.7/5.5KW |
進給電機 Feed motor | 0.75KW(FANUC) 1KW(SYNTEC) | |
其它 Others | 總電氣容量Required electric power | 7 kVA |
機床尺寸(長×寬×高)Floor Space | 1527×1107×1661mm | |
機床重量Mass of machine | 約1500KG About 1500KG | |
